Expanded 2mm Thickness SWD 36mm Aluminium Diamond Mesh For Outdoor Wall

Anping County Baitong wire mesh products Co., Ltd

Expanded 2mm Thickness SWD 36mm Aluminium Diamond Mesh For Outdoor Wall

  • 1
  • 2

Brand Name : BAITONG

Model Number : BT-714

Certification : ISO-9001

Place of Origin : China

MOQ : 10

Price : Negotation

Payment Terms : L/C, T/T

Supply Ability : 100 piece per day

Delivery Time : 5-8 days

Packaging Details : wooden box

Material : Aluminum sheet

Application : Protecting Mesh,Fencing,decorated

Type : Expanded Mesh

Technique : Perforated

Weave style : EXPANDED METAL

Color : Silver,red,Black,white,yellow and other color

Hole shape : diamond

Contact Now

Aluminum Expanded Metal Mesh Diamond Hole aluminum expanded mesh sheet

Product information:

Aluminum mesh is also called stretch mesh. It is made by cutting and expanding the original steel plate with the latest technology, and its net body is lighter and stronger. The most common aluminum mesh is diamond-shaped holes, and other hole types include hexagonal, round, triangular, and fish-scale holes. And widely used in households, agriculture, construction, medicine, filtration, protection, insect control, handicraft manufacturing, etc.

The aperture of the aluminum mesh is divided into: 0.5x1mm, 1x2mm, 1.25x2.5mm, 1.5x2.5mm, 1.6x3.2mm, 2x3mm, 3x4mm, 3*5mm, 3*6mm, 4*8mm, 5*10mm, 6*12mm , 8*16mm, 10*20mm, 12*25mm, 15*30mm 20x40mm 25x50mm 30x60mm 40x80mm 50x100mm, etc. Hexagonal aperture; fish scale hole (used for lampblack net cover)

Product details:

Name: Aluminum expanded metal sheet

Thickness Nominal size of mesh Standard size Weight
SWD LWD Strand width LWM SWM
D TL TB b B L kg/m2
0.5 3 6 100 200 2000 0.6
3.2 8
5 10
6 12.5 1800 3000 0.37
7 14
8 16 2000 3340
9 20
12 30 1.35 1800 2000 3600 4000 0.3
10 25 1.12
0.8 10 25 1.12
12 30 1.35 0.48
15 40 1.68
1.0 10 25 1.12
12 30 1.35 0.6
15 40 1.68
1.2 10 25 1.13
12 30 1.35 0.73
15 40 1.68
18 50 2.03
1.5 15 40 1.69 0.91
18 50 2.03
22 60 2.47
29 80 3.25 1.21
2.0 18 50 2.03 1800 2000 2500 3600 4000 5000
22 60 2.47
29 80 3.26 1.52
36 100 4.05
44 120 4.95

Product feature:

It has the characteristics of no rust, beautiful color, gorgeous color, beautiful appearance, sturdiness and durability, high quality and high grade. When the color aluminum mesh is used in architectural decoration for outdoor curtain walls, due to its unique solidity of metal materials, it can easily withstand the invasion of unfavorable weather factors such as storms, and is easy to maintain. From a purely viewing point of view, metal mesh It has the characteristics of silk fabrics and gives people a visual enjoyment. When used as an indoor roof or partition wall, the unique permeability and gloss of its material give the space more aesthetic pleasure.

Color: blue, green, yellow, pink, white, red, etc.

Our products have many models and complete specifications; they have the characteristics of gorgeous colors, beautiful appearance, sturdiness and durability, high quality, and high grade. They are popular all over the world and have been well received.

Product show:

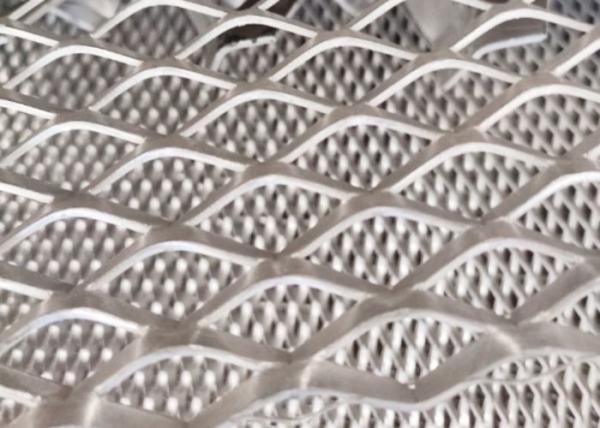

Expanded 2mm Thickness SWD 36mm Aluminium Diamond Mesh For Outdoor Wall

Product Application:

Mainly used for house decoration, handicraft production, high-end speaker net. Oxidized color aluminum mesh is mainly used for house decoration, handicraft production, high-end speaker nets, suspended ceilings, and ceilings.

The aluminum mesh has other heterogeneous apertures as shown in the figure: This specification aluminum mesh is made by improving the machine and equipment to use the feeding parts of the picking equipment, so that it can produce large feeding aluminum mesh on small machines and equipment, making it visual Beautiful and generous.

Packing & Shipping:

1.Plastic film packaging 2.Tie packaging 3.wooden box 4.Bubble wrap

5.customized

Expanded 2mm Thickness SWD 36mm Aluminium Diamond Mesh For Outdoor Wall


Product Tags:

2mm thickness aluminium diamond mesh



SWD 36mm aluminium diamond mesh



2mm thickness metal diamond mesh


China Expanded 2mm Thickness SWD 36mm Aluminium Diamond Mesh For Outdoor Wall wholesale

Expanded 2mm Thickness SWD 36mm Aluminium Diamond Mesh For Outdoor Wall Images
